Forming & Shoring

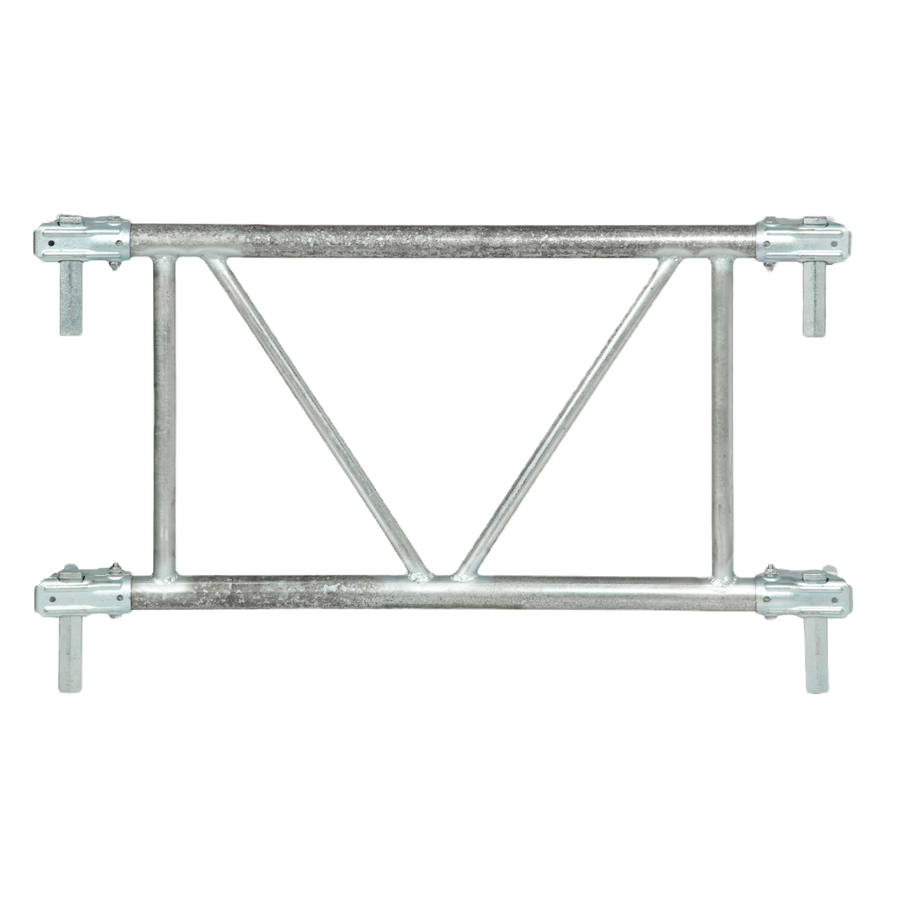

Brace Frame
Brace frames tie shoring and scaffold towers together, adding the lateral rigidity that keeps assemblies square and stable under load. Quick-connecting ends make setup fast and predictable, while the galvanized build stands up to demanding site conditions. Essential hardware for safe, dependable shoring configurations.
- We sell, we don’t rent
- Stocked at 3 yards
- Same-day quotes
Specifications
| Item name | Code | Size | Weight |
|---|---|---|---|
| Brace Frame 625 - Steel | 320625 | 625 x 500 | 15 LBS |
| Brace Frame 750 - Steel | 320750 | 750 x 500 | 19 LBS |
| Brace Frame 900 - Steel | 320900 | 900 x 500 | 23 LBS |
| Brace Frame 1200 - Steel | 321200 | 1200 x 500 | 29 LBS |
| Brace Frame 1500 - Steel | 321500 | 1500 x 500 | 37 LBS |
| Brace Frame 2250 - Aluminum | 322250 | 2250 x 500 (AL) | 27 LBS |
| Brace Frame 2370 - Aluminum | 322370 | 2370 x 500 (AL) | 28 LBS |
Nominal values. Availability varies by location, so confirm current stock with your quote.
More forming & shoring components
Request a quote
Get pricing on brace frame
Add quantities, the project location and when you need it. We reply the same business day.
