Forming & Shoring

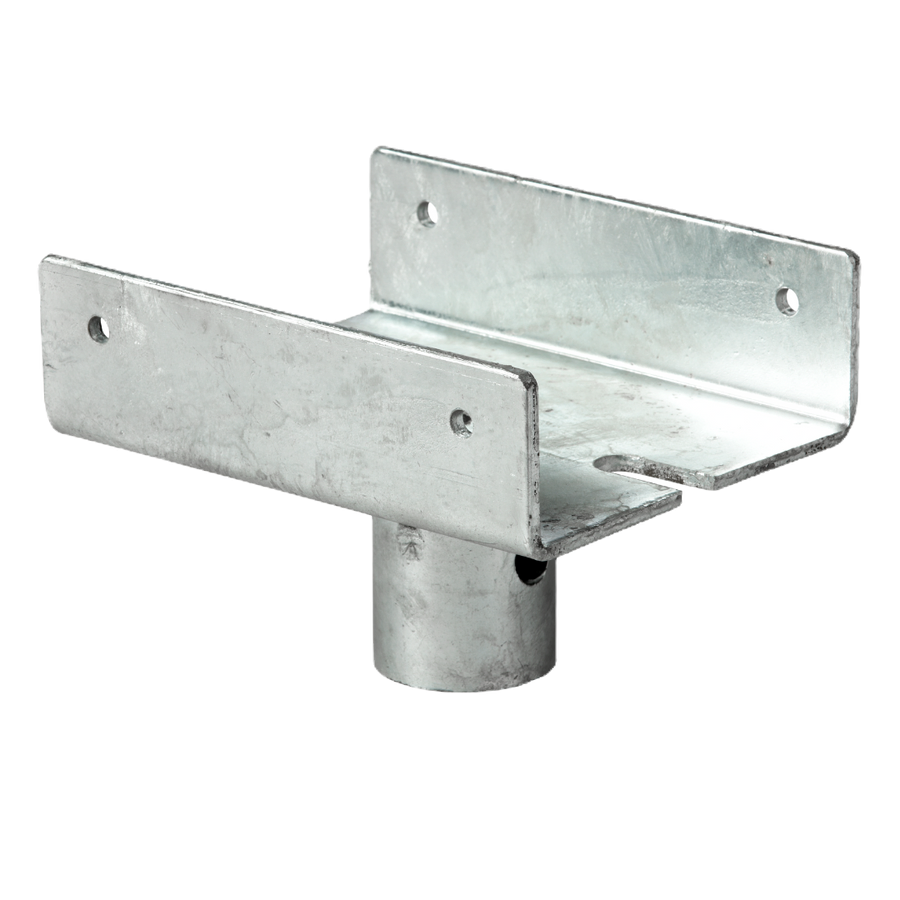

U-Head
U-heads sit atop shoring posts and frames to cradle beams and stringers, transferring load cleanly while allowing fine height adjustment. The threaded jack dials in precise elevations and locks securely under heavy formwork. A durable, reusable component that keeps slab forming accurate and stable.
- We sell, we don’t rent
- Stocked at 3 yards
- Same-day quotes
Specifications
| Item name | Code | Size | Weight |
|---|---|---|---|
| U Head jack | 100300 | 6"x 8" | 16.5 LBS |
| U head 8"x8-1/2" with 2bolt & nut RSJ | 100312 | 8"x 8.5" | 7.5 LBS |
| U-Head 10"x7-3/4" with spigot for 10K Frame Hot-Dip Galvanized | 300045 | 10"x7-3/4" | 7 LBS |
| U-Head 10"x7-3/4" with spigot for Multiprop Hot-Dip Galvanized | 310710 | 10"x7-3/4" | 7 LBS |
| Fork Head Galv 4-Way H20 | 320009 | 6 x 8" | 10 LBS |
Nominal values. Availability varies by location, so confirm current stock with your quote.
